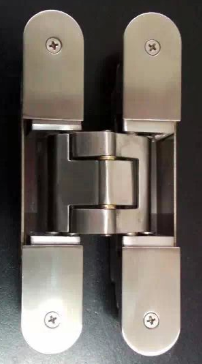

Heavy Duty 3D Concealed Hinge

  • Model NO.: JL340S
  • Material: Solid SUS 304
  • Size(W*L*D): 28*160mm
  • Finish:Satin Stainless steel;Polished Stainless steel.

Heavy Duty 3D Adjustable Concealed Hinge

Model No.: JL340S

1, Size(W*L): 28*160mm

2, Material: Solid SS 304

3, Finish: SSS, PSS, AB, AC, PVD

4, Range of application: Interior door, Entrance door, Metal Door, Swing Door etc.

5, Weight bearing: 90 kgs/2pc; 120 kgs/3 pcs (Suggesting 3 pcs/door)

6, Door thickness: 40-80mm   Maximum door width:1000mm

7, Adjustable parameter: up&down:±3.0mm, left&right: ±3.0mm, front&back:±1.0mm.

8, Open degree:180

9, Delivery Time: 25 ~ 30 days   Loading Port: Jiangmen, Guangdong.

10, Packing: 1 pc/Polybag, 2 pcs/inner white box   20 pcs/carton

11, Payment Term:  T/T; L/C; Western Union; Money Gram.

Custom designs, sizes, colors, and logos are accepted


Heavy Duty 3D Concealed Hinge
