Adjustable Concealed Hinge-NEW

  • Model NO.: JL013
  • Material: Zinc Alloy
  • Size(W*L*D): 28/32*114

Model No.: JL013

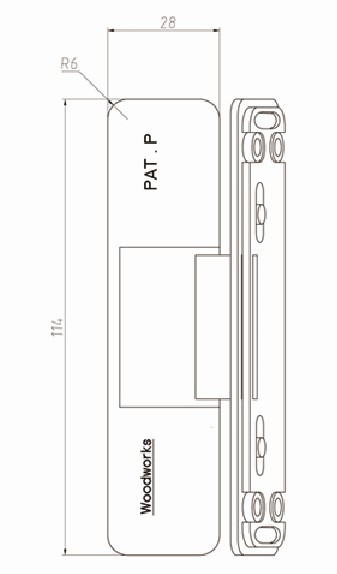

1, Size(W*L): 28/32x114mm

2, Material: Zinc alloy

3, Finish: Chrome painted, Gold painted

4, Range of application: Wooden Door, Metal Door, Swing Door.

5, Weight bearing: 80kgs/3pc(Suggesting 3 pcs/door)

6, Door thickness: 35-80mm   Maximum door width:1000mm

7, Adjustable parameter: up&down:±1.5mm, left&right: ±1mm, front&back:±1mm.

8, Open degree:180

9, Delivery Time: 25 ~ 30 days   FOB Port: SHANGHAI

10, Inner packing: 1 pc/Polybag, 2 pcs/inner white box   Outer packing: Carton

11, Payment Term:  T/T; L/C; Western Union; Money Gram.

Custom designs, sizes, colors, and logos are accepted



The application, use or processing of Adjustable Concealed Hinge as well as the production of products based on our technical recommendations are beyond our control and therefore fall exclusively in your area of responsibility. A concealed hinge for doors weighing up to 40kgs when three hinges are used. The hinge is adjustable vertically and also for depth allowing precise fitting of the door.
Suitable for security door, entrance door, antitheft door, anti-fire door, wooden door and interior door.
Adjustable in three directions and provident for the users in the after-sale installation.
